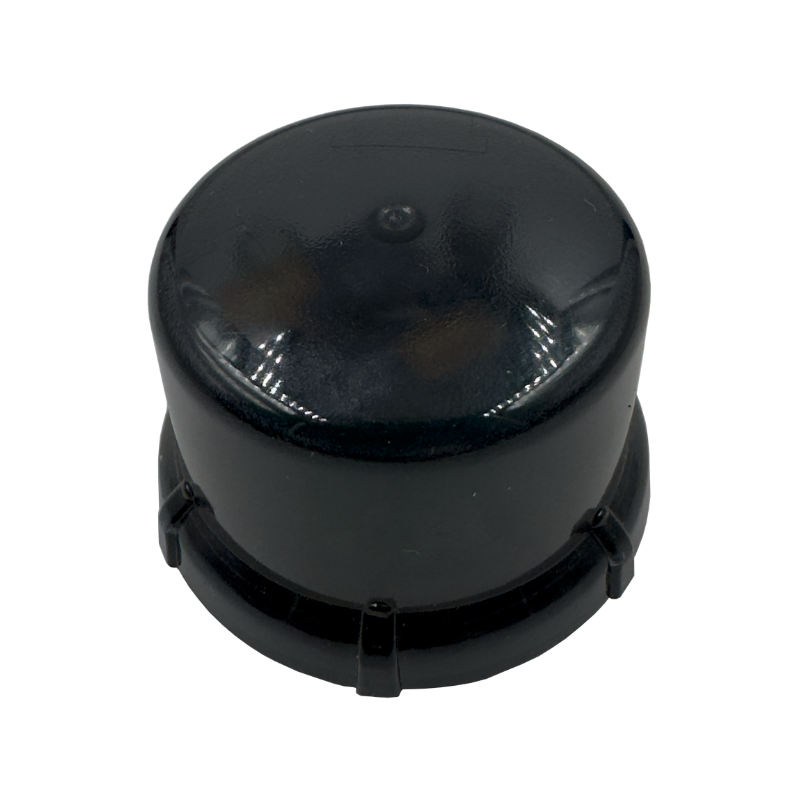

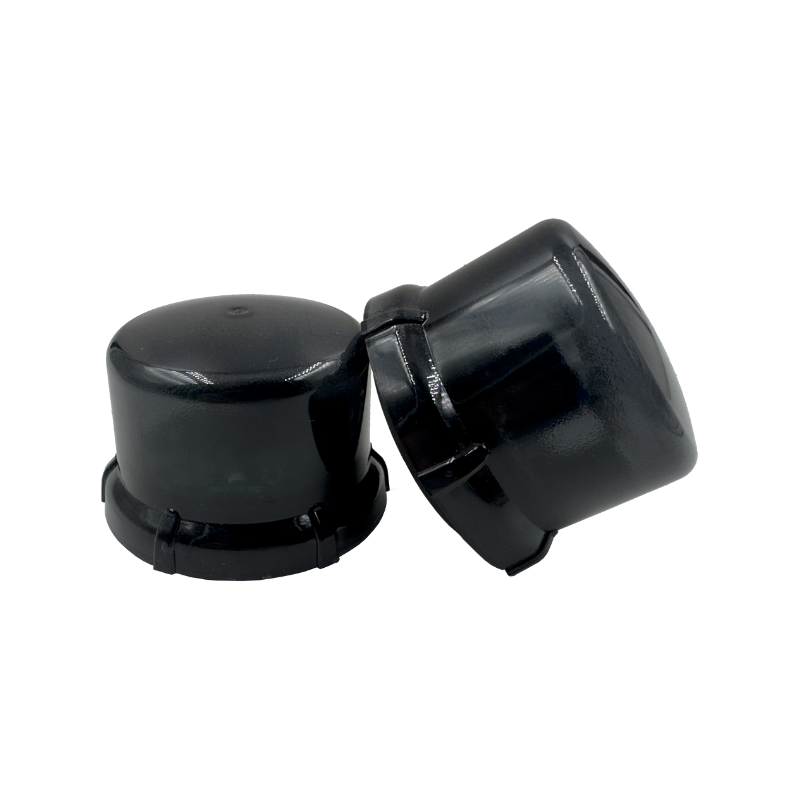

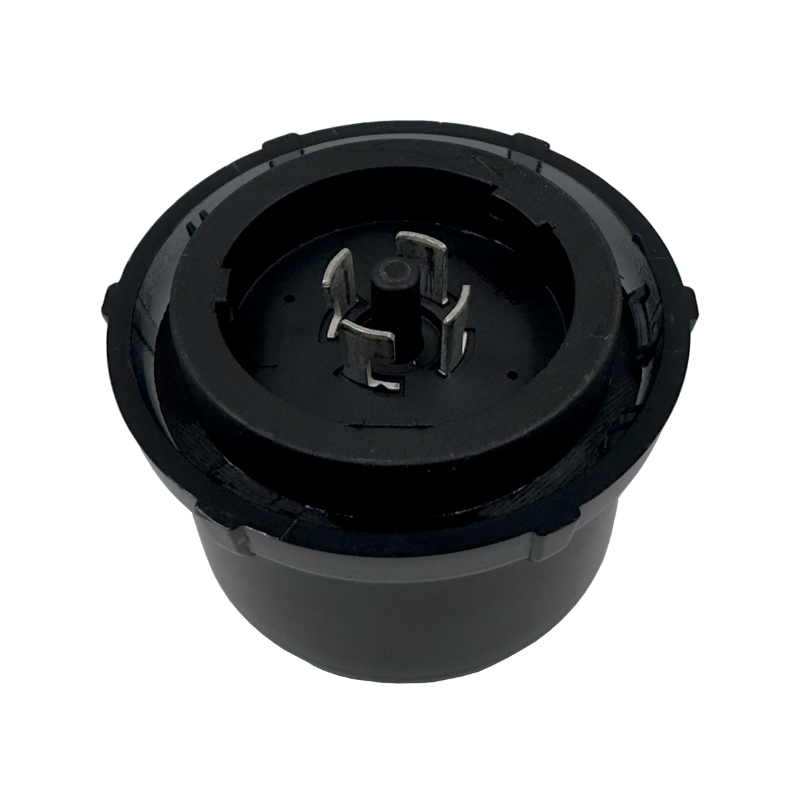

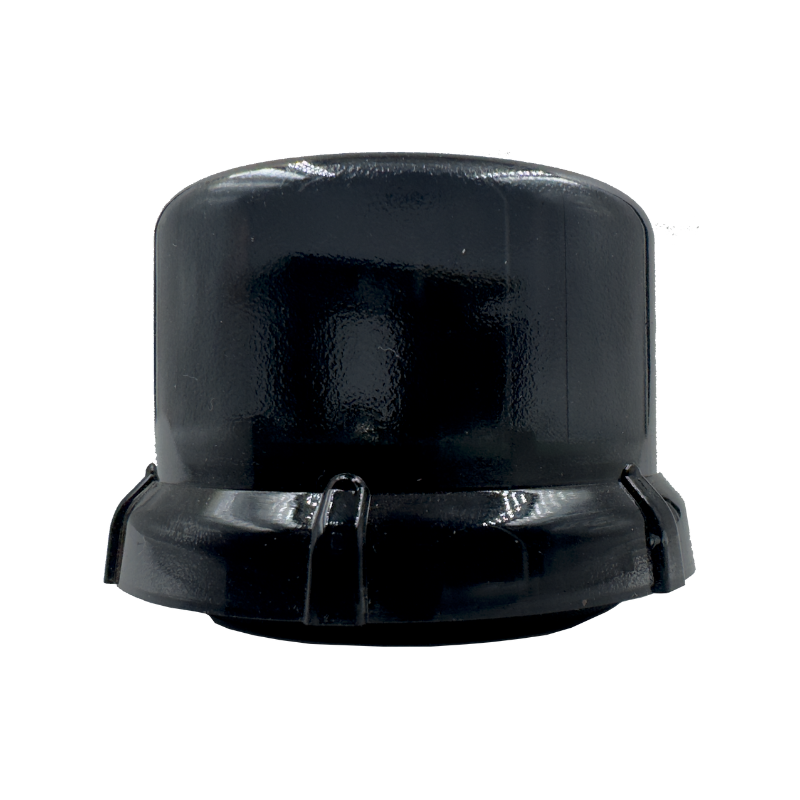

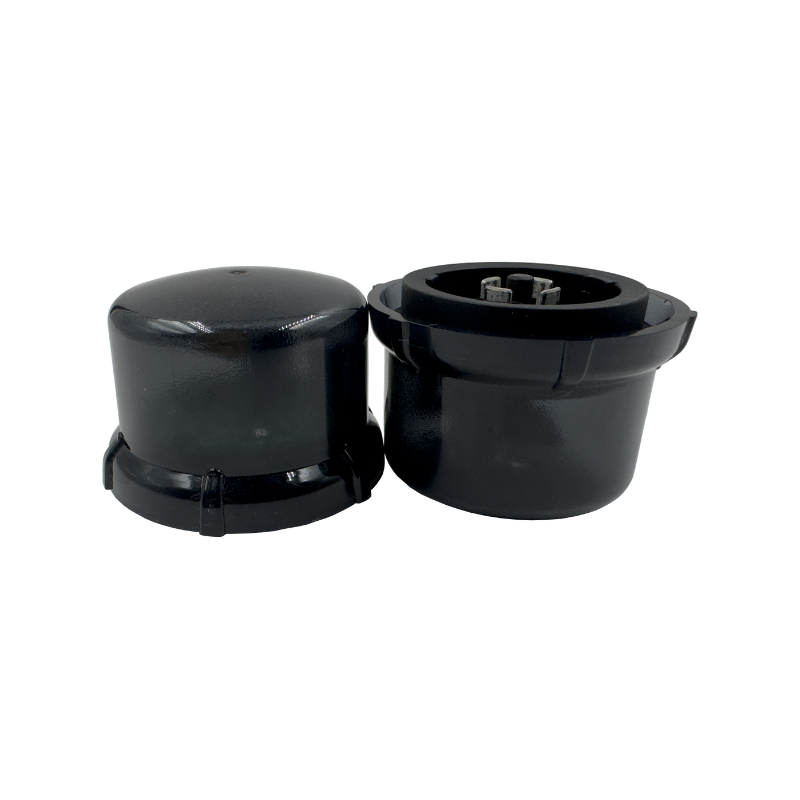

ZGS01 Zhaga 24GHz Radar Sensing Module

I.Core Features & Technical Advantages

• Precision Sensing, Intelligent Response

24GHz Millimeter-Wave Radar: Utilizes FMCW (Frequency-Modulated Continuous-Wave) technology with adjustable detection range (0.2-8m) and 60° horizontal coverage. Accurately tracks human/vehicle movement and supports stationary object detection.
Multi-Mode Triggering: Integrates microwave anti-false-trigger algorithms to eliminate environmental interference (e.g., swaying leaves, small animals). Combines light-sensing and radar detection for complex indoor/outdoor environments.

• Industrial-Grade Reliability

Wide Temperature Range: Operates stably from -40°C to +85°C, with IP66 waterproof/dustproof rating for outdoor lighting (e.g., streetlights, high-bay industrial lights).
Efficient Power Management: 12-24V DC input, ≤50mA operating current, and 0-10V/PWM dimming signal output for compatibility with mainstream LED drivers.

• Zhaga-Standard Compliance, Modular Upgrade

Plug-and-Play Design: Conforms to Zhaga Book 18 interface specifications, enabling direct replacement of traditional light-sensing controllers and reducing retrofitting costs.
Open API Support: Provides RS485 (Modbus-RTU) communication protocols for integration with building automation systems (BACnet) and smart city platforms.

• Flexible Scene Adaptation

Smart Lighting Control: Auto-adjusts streetlight brightness based on radar input, achieving "vehicle-activated lighting" with up to 70% energy savings.
Security Integration: Triggers camera tracking and alarms upon detecting intrusions, ideal for warehouses and parking lots.
Industrial Automation: Monitors personnel activity on production lines and coordinates AGV obstacle avoidance for enhanced factory intelligence.

• Technical Specifications

II.Application Scenarios

• Smart City Street Lighting

Deployed in LED streetlights to dynamically adjust brightness, switching to 30% power during off-peak hours for energy efficiency and extended lifespan.
Zhaga Book 18 compatibility allows rapid replacement of legacy controllers and supports remote OTA firmware updates.

• Industrial Plant Safety Monitoring

Integrated into high-bay lights to detect personnel activity and trigger emergency stops for hazardous equipment, preventing accidents.
Connects to PLCs via RS485 for combined analysis of production and sensing data.

• Commercial Complex Energy Management

Controls parking lot lighting by detecting vehicle positions, reducing "always-on" waste.
Supports 0-10V dimming and DALI/DMX512 protocols for immersive commercial lighting designs.

• Standardized Compatibility: Zhaga Book 18 interface ensures seamless module replacement and reduced maintenance costs.

• Universal Coverage: A single module meets multi-dimensional sensing needs across road lighting, industrial security, and beyond.
• Unmatched Value: Industrial-grade performance at a consumer-friendly price, accelerating IoT project deployment.

Act Now – Pioneer the Era of Smart Sensing!
The ZGS01 Zhaga radar module is available for sample requests, with SDK development kits and technical support to fast-track your smart lighting or security solutions. Contact us for customized demos and pricing!

SWIOTT – Where Every Light Beam Embodies Intelligence.
