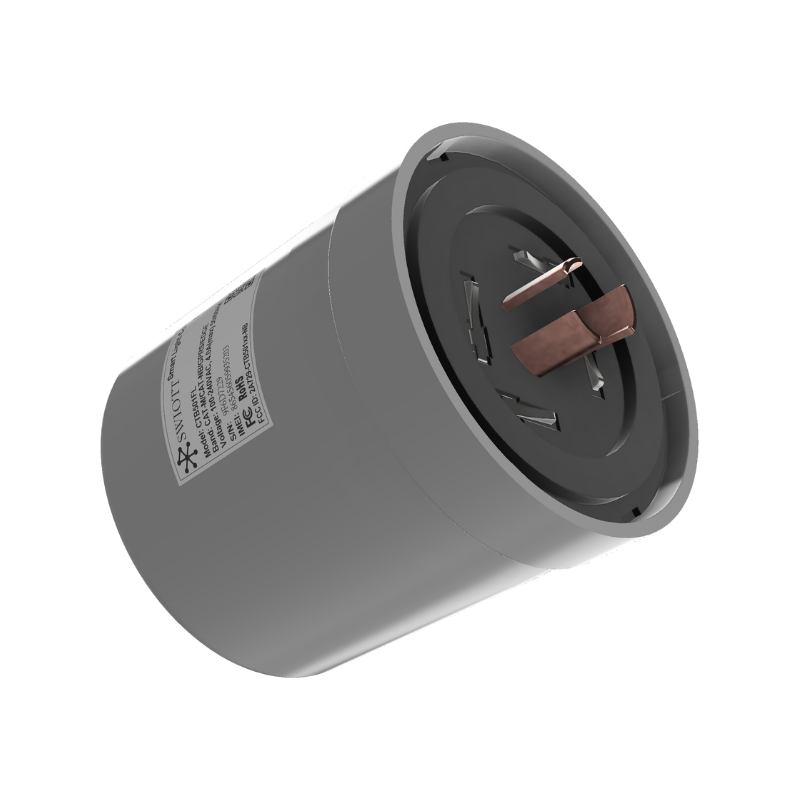

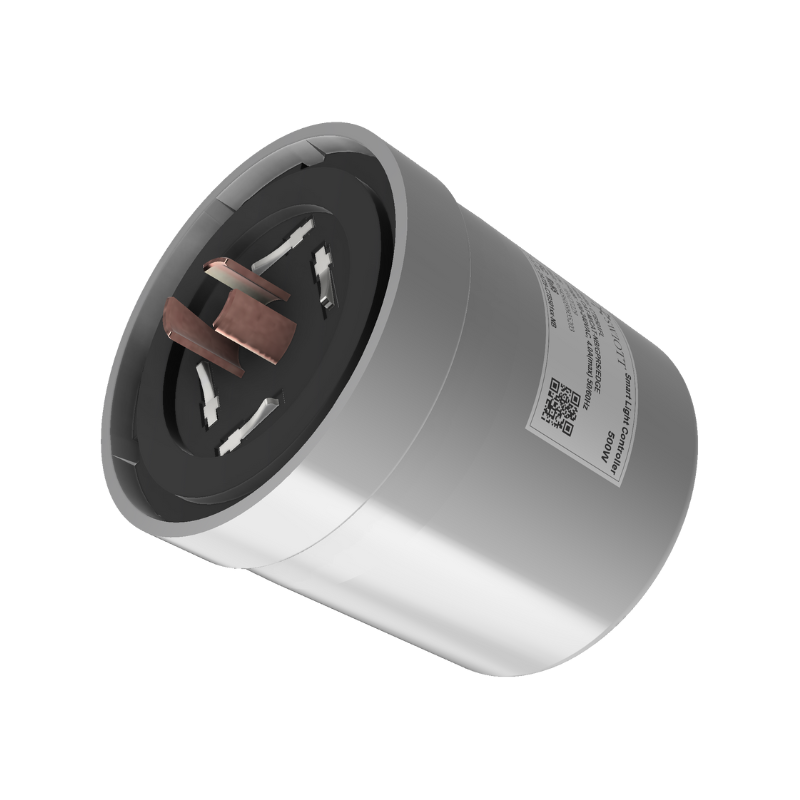

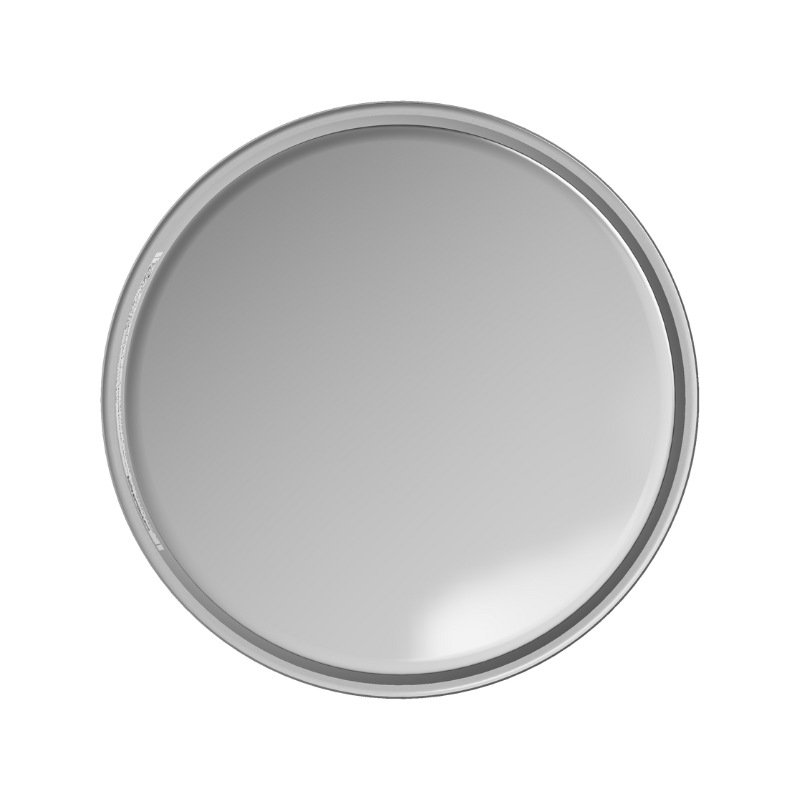

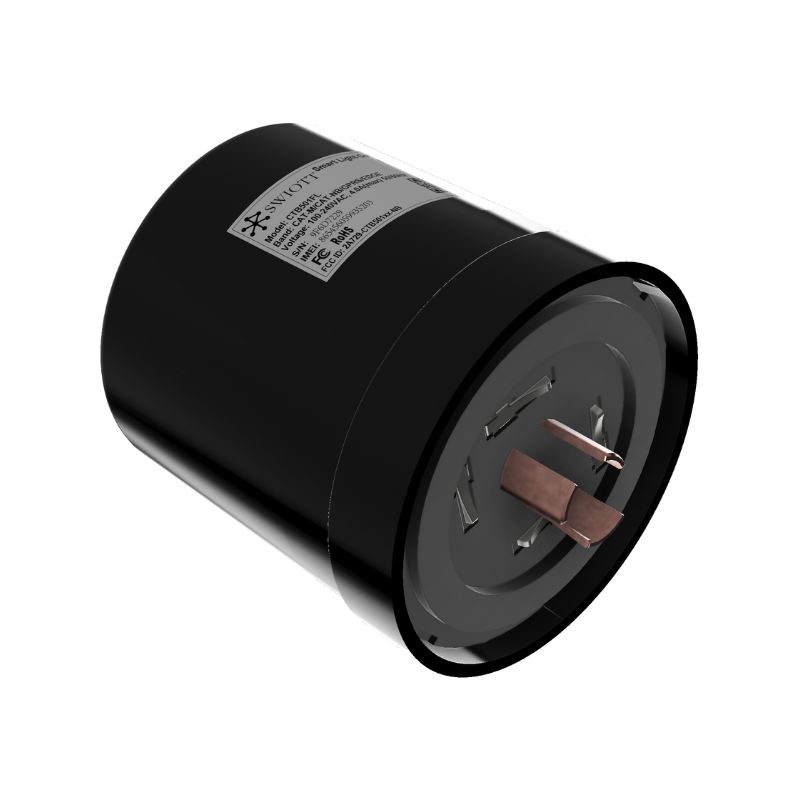

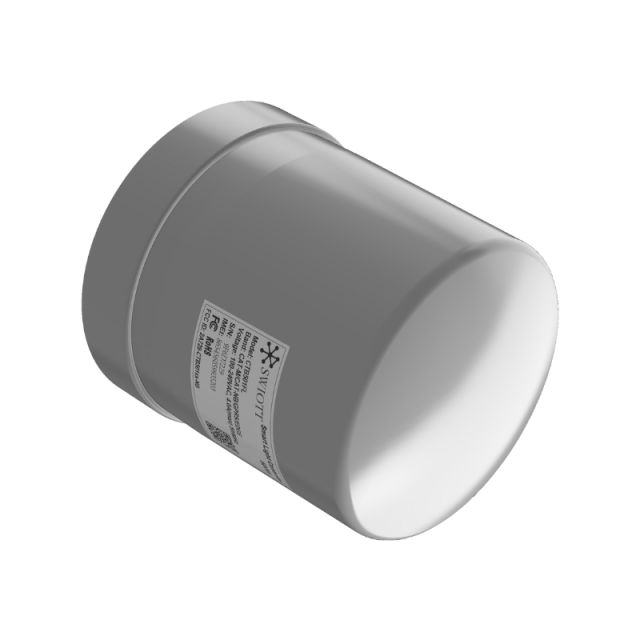

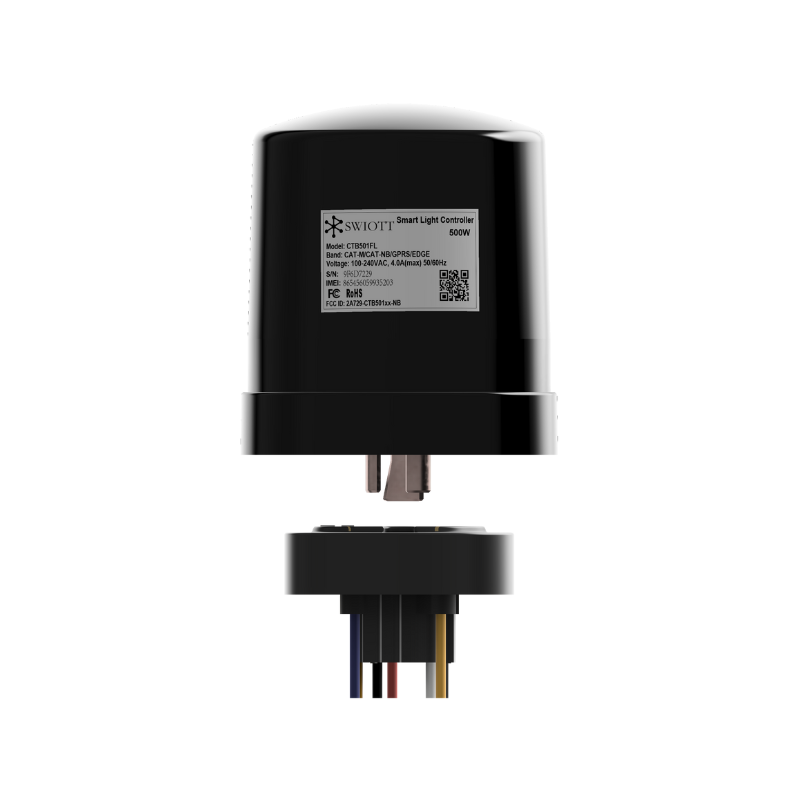

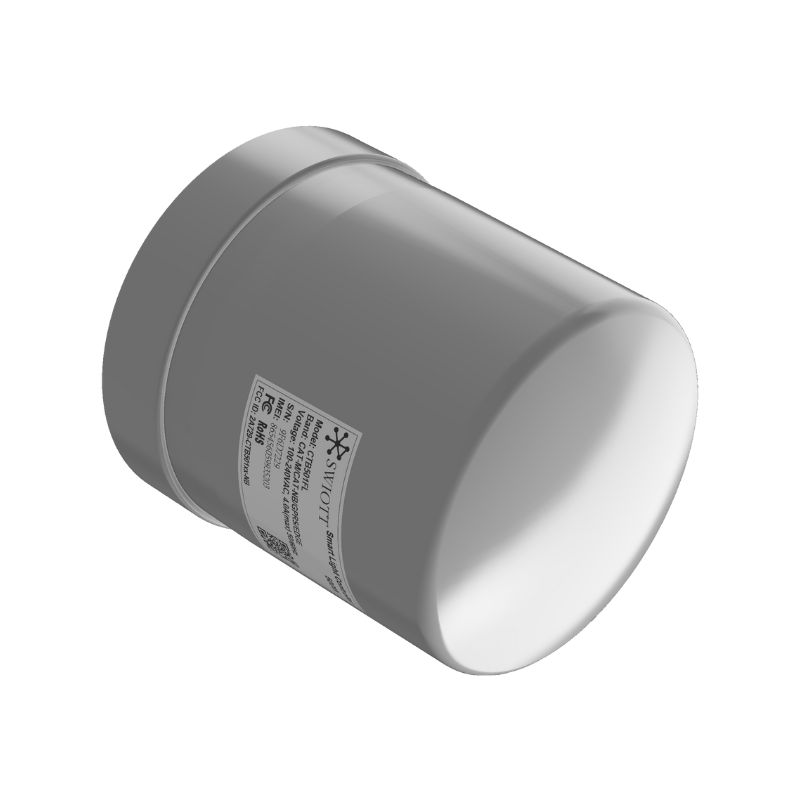

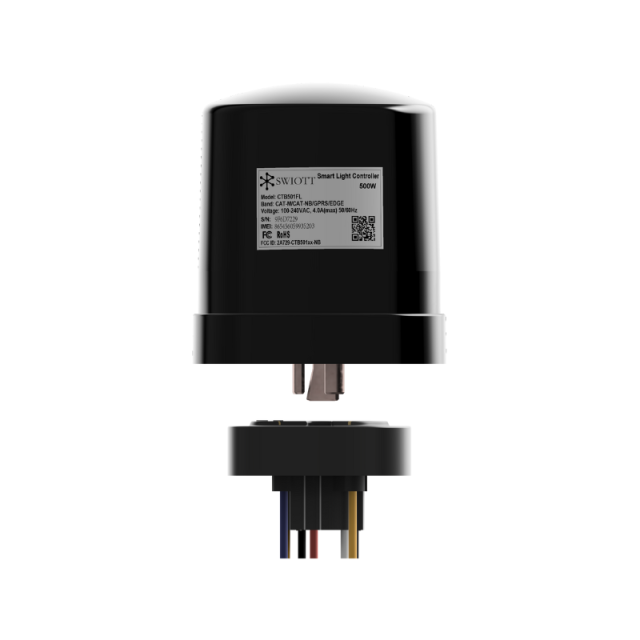

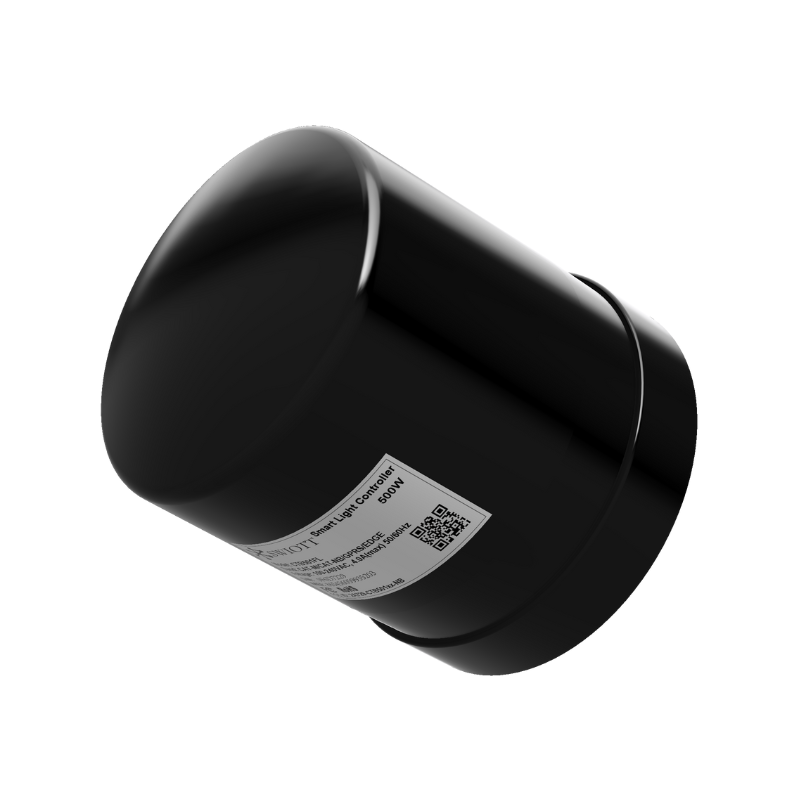

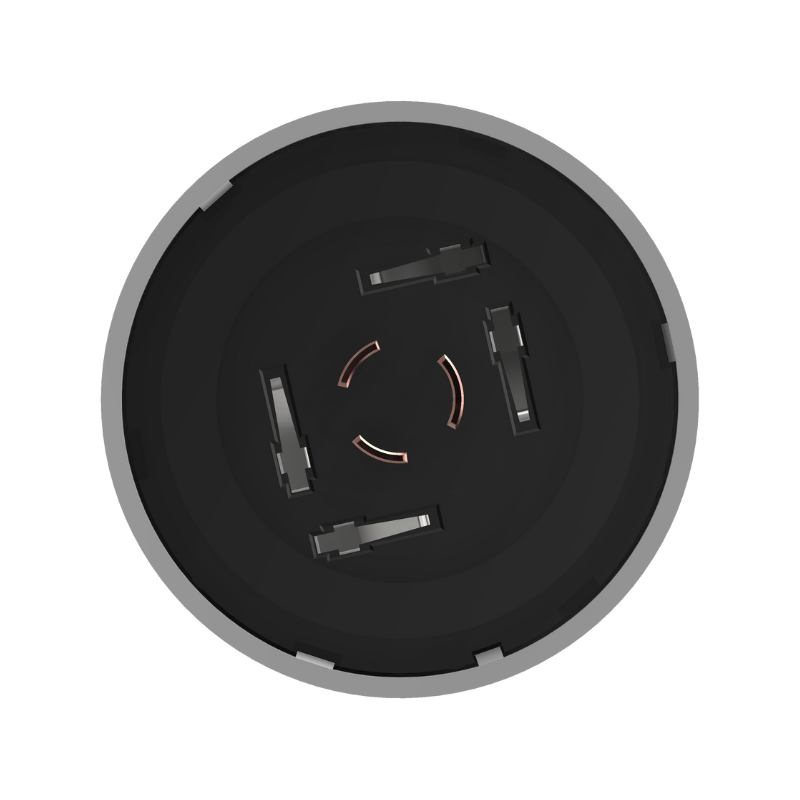

Name: CTB501 NB-IoT Smart Street Light Controller
Brand: SWIOTT
Availability: InStock
Rating: 5 (1 reviews)

Description

I. Intelligent Management, Effortless Control, Enhancing Management Efficiency
Equipped with advanced NBIOT/CAT-M/GSM communication technology, the CTB-501-FL enables remote real-time control of street lights. You can refined management street lights anytime, anywhere through the CMS platform or open-API MQTT internet. Whether adjusting brightness, setting on/off times, or monitoring the operating status of street lights, everything is under your control. This intelligent management method can significantly improve management efficiency, reduce operation and maintenance costs, and make urban lighting management more convenient and efficient.

II. Wide Compatibility, Easy Installation, Adapting to Various Scenarios

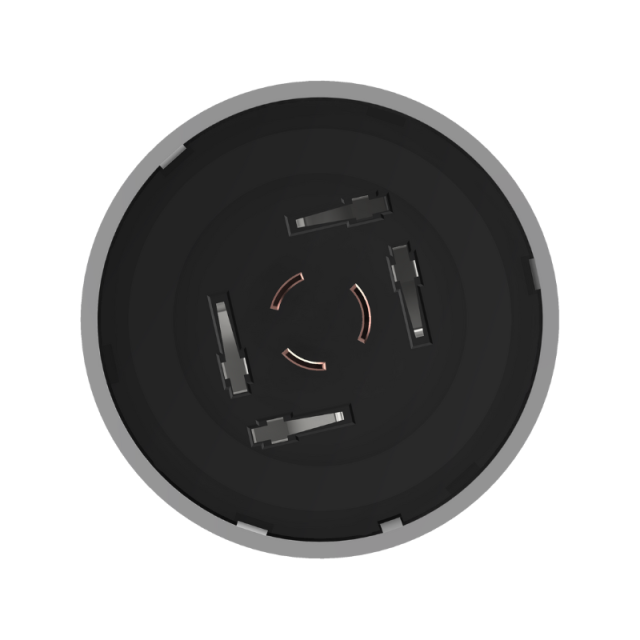

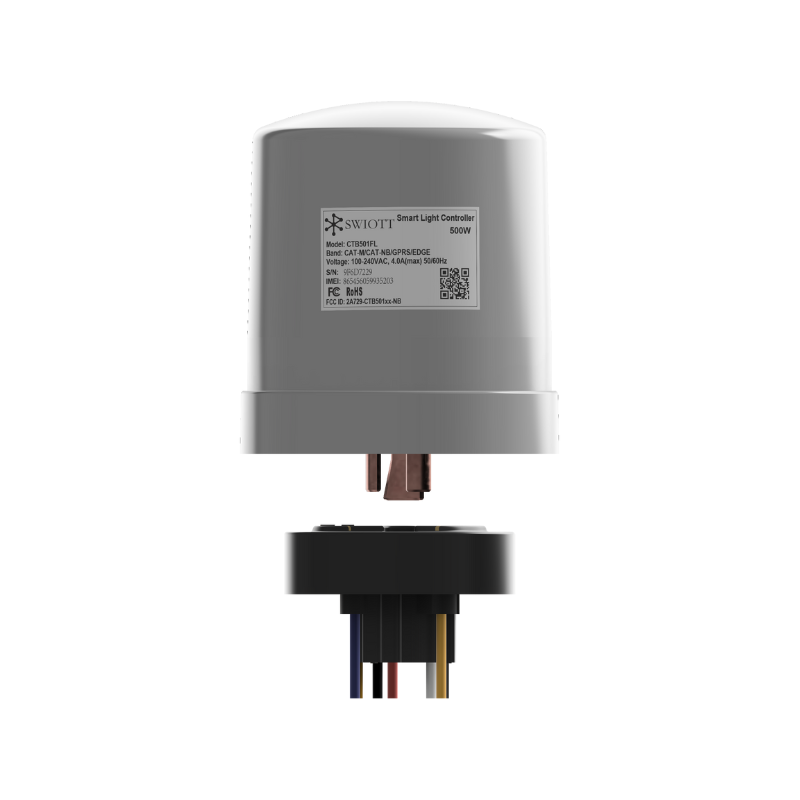

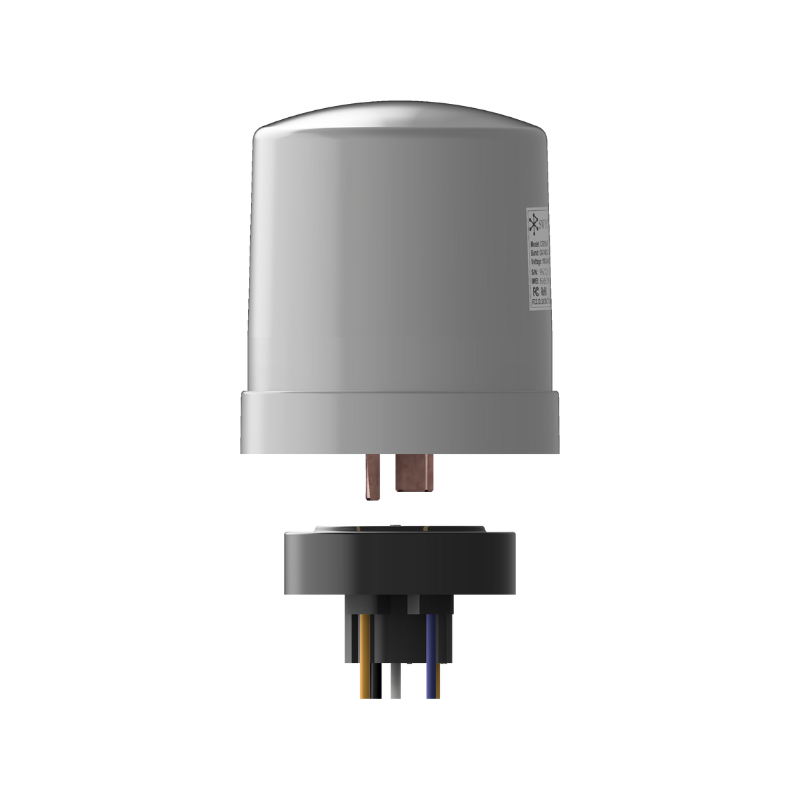

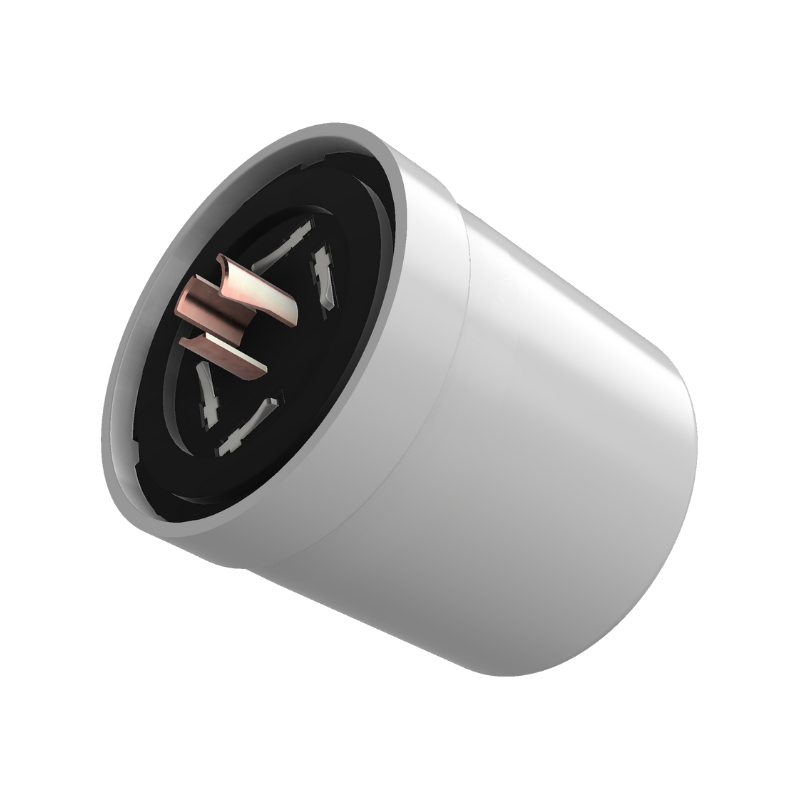

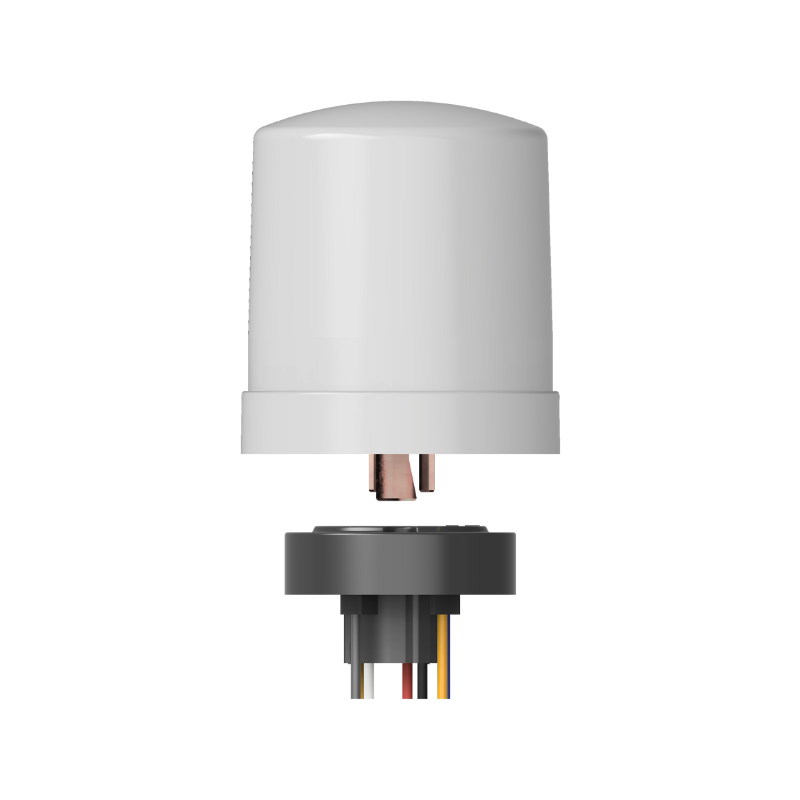

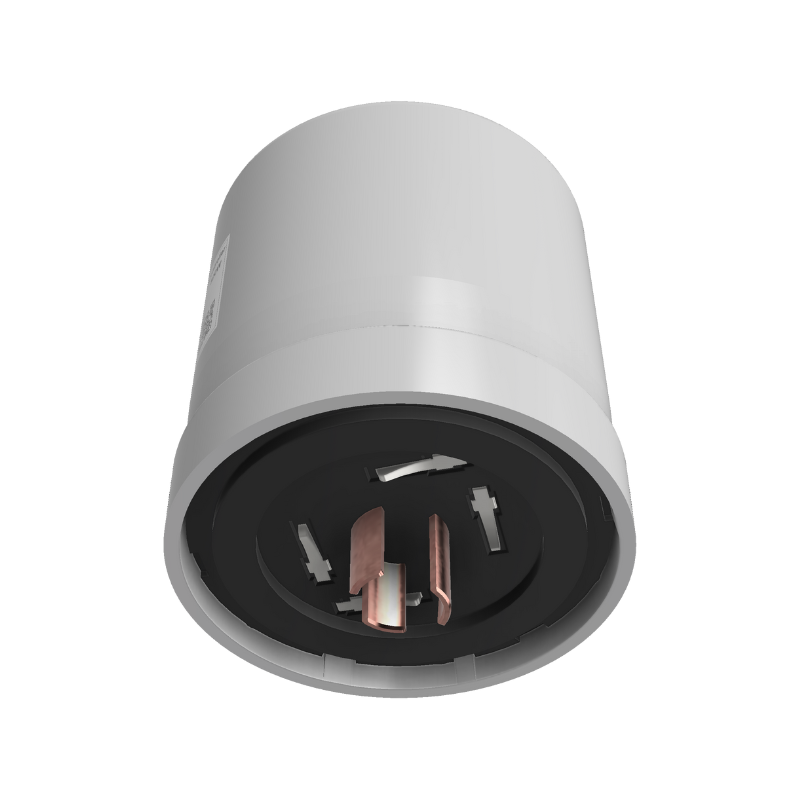

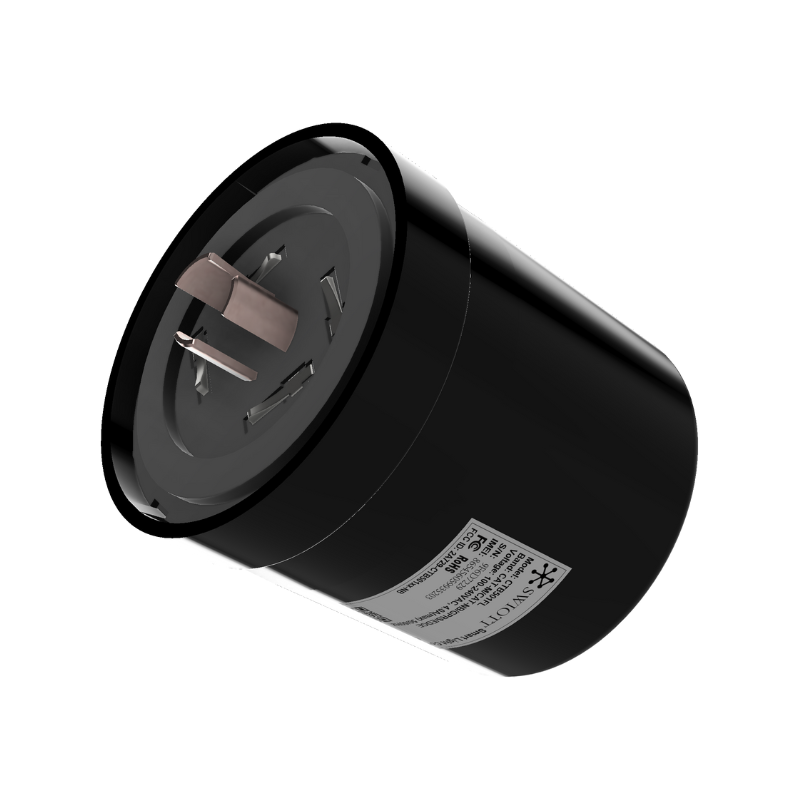

The CTB-501-FL is compatible with the C136.41 NEMA socket standard interface, which means it can easily adapt to most street light models on the market. Whether it\'s a new smart street light project or an intelligent transformation of traditional street lights, the CTB-501-FL can seamlessly integrate, simplifying the installation process and saving time and labor costs. Its compact design and sturdy shell also enable it to adapt to various installation environments.

III. Comprehensive Functions, Meeting Diverse Needs, Creating Intelligent Lighting
The CTB-501-FL is not just a street light controller; it is also a powerful intelligent lighting management platform. It integrates a metering chip that can monitor the energy consumption data of street lights in real time, providing data support for energy-saving management. Equipped with a tilt sensor and a light sensor, it can intelligently perceive environmental changes, such as detecting whether the street light is tilted and the intensity of ambient light, thereby achieving on-demand lighting and intelligent dimming to avoid energy waste. In addition, it supports multiple dimming interfaces such as 0-10V/PWM/DALI, which can meet the dimming needs in different scenarios, whether it is road lighting, landscape lighting, or commercial lighting, it can provide appropriate lighting solutions to create a comfortable and energy-saving light environment.

IV. Strong Adaptability, Reliable and Durable, Unfazed by Harsh Environments
The CTB-501-FL offers two input voltage options, 100Vac-240Vac or 100Vac-480Vac, which can adapt to voltage environments in different regions and has a wide range of applicability. Its IP66 waterproof and dustproof rating ensures stable operation under various harsh weather conditions, such as heavy rain and sandstorms, ensuring the continuity and stability of urban lighting. In addition, the CTB-501-FL also has a zero-crossing relay control function, which can effectively reduce electromagnetic interference and extend the service life of street lights. At the same time, the optional GPS/GNSS/BD positioning function enables precise positioning of street lights, facilitating subsequent maintenance and management.

V. Technical Parameters, Highlighting Excellent Quality
• Product Size and Weight: Compact design with dimensions of only 90mm x 90mm x 115mm and light weight, easy to install and transport.
• Protection Level: IP66 waterproof and dustproof rating, suitable for various outdoor environments.
• Input Voltage: Optional 100Vac-240Vac or 100Vac-480Vac, meeting different voltage requirements.
• Operating Temperature: -40°C to +60°C, adapting to various extreme climates.
• Storage Temperature: -40°C to +85°C, ensuring product stability in various environments.
• Safety Standards: Complies with relevant safety standards to ensure usage safety.

Characteristics
Warranty(Year)	3-Year	Type	Remote Control
Max. Load Power	1000W	Connection Mode	NBIOT/CAT-M/GSM
Place of Origin	Guangdong, China	Feature	Portable, Waterproof, Durable, Wireless Control, easy...
Remote Distance	3km	Lighting solutions service	Lighting and circuitry design, Project Installation
Product Weight (kg)	0.3	Static Power Consumption	2w
Brand Name	swiott	Material	Plastic
Water proof	IP66	Usage	lighting
Certificates	CE,FCC,CB	Main IC	"SIM7070G RP2040"
Dimming Type	0-10V/PWM	Output	Single
Cat-M Frequency	B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19,	Input voltage	100Vac~240Vac
Short circuit protection	No	Rated voltage	220Vac
Overheating protection	Yes	input frequency	47Hz to 63Hz
Waterproof level	IP66	Max power	1000W
MTBF	>200khours	Max current	4A
Operating temperature	-40°C to +60°C	Standby power	<2W
Storage temperature	-40°C to +85°C	NBIOT/CAT-M/GSM frequency	Cat-M:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85 Cat-NB:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85 GSM:850/900/1800/1900MHz
size packaging (LWH)	90mm90mm115mm	Dimming output	0V-10V @ 27mA(max)
Weight	0.3kg	Measurement accuracy	<1.5%
case max temperature	80°C	Harmonic content	<10%
Safety standards	CE、FCC、CB	Overload protection	Yes
EMC	EN55015、EN55022
